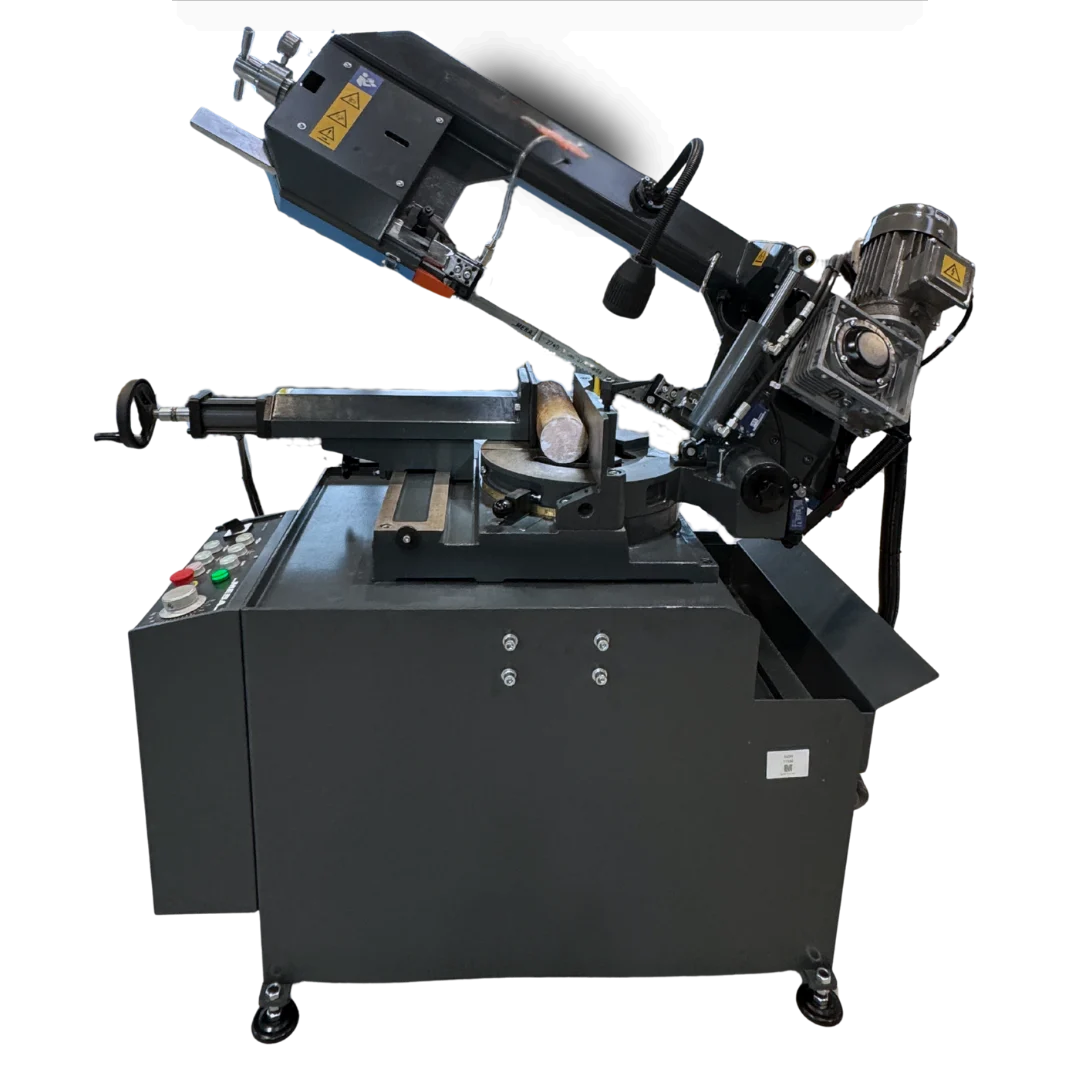

base 24 DG-HS

base: The must-have for doers

The starter saws of the base series are suitable for a wide range of applications and are reliable all-rounders. Whether for your hobby in the garage, craftsman or metal worker – there is something for everyone. The universally usable miter band saw machine base 24 DG-HS is ergonomically mature and has an optimal price-performance ratio. Simple central operation.

Standard equipment

• Manual miter adjustment from 90° to 30°, infinitely variable according to scale with 1.0° accuracy
• The miter pivot point is the intersection between the saw blade and the material, which is why there is no change in length when the angle position is changed
• End stops at 30° – 45° – 90° – 45°
• Hydraulic material clamping. The material is clamped parallel at 90° for every angle setting of the saw frame.
• Central machine operation
• Cutting pressure reduction due to the dead weight of the heavy, torsion-resistant saw frame and fine adjustment depending on the material cross-section via hydraulic damping cylinder and weight compensation spring
• Saw blade drive with limit switch
• Stepless jaw adjustment
• Movable belt guide arm, adjustment to material width
• Saw blade deflection rollers – carbide guide
• Practical chip collection tray with drip screen
• Chip cleaning brush, rotating
• Mechanical saw blade tensioning
• Operating instructions and spare parts list (digital)
• 1  bimetal saw blade 4/6 ZpZ mounted on machine
• Complete coolant system
• Anthracite paint finish (RAL 7016)
