The Universal Helper: Clever and Uncomplicated
Especially suitable for universal use with different cross-sections, materials and often changing miter cuts. A metal band saw machine for straight and miter cuts, infinitely adjustable from 45° – 90° – 45° – 30°. Rotational center unchanged at each angle setting, thus exact length measurement at 90° and in the miter range.

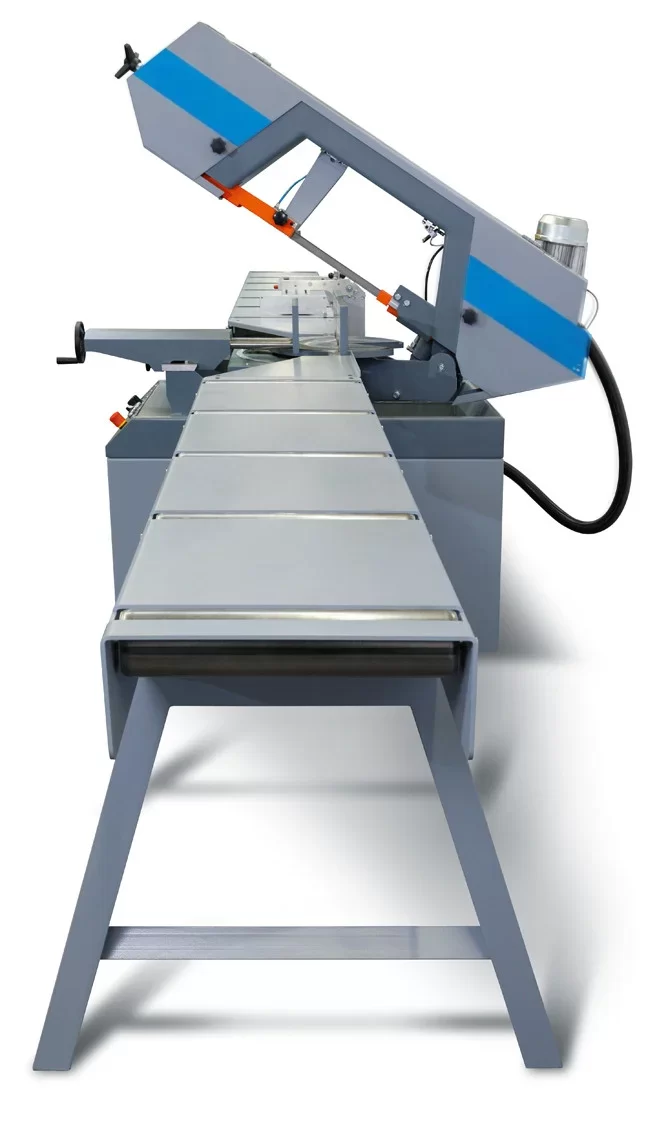

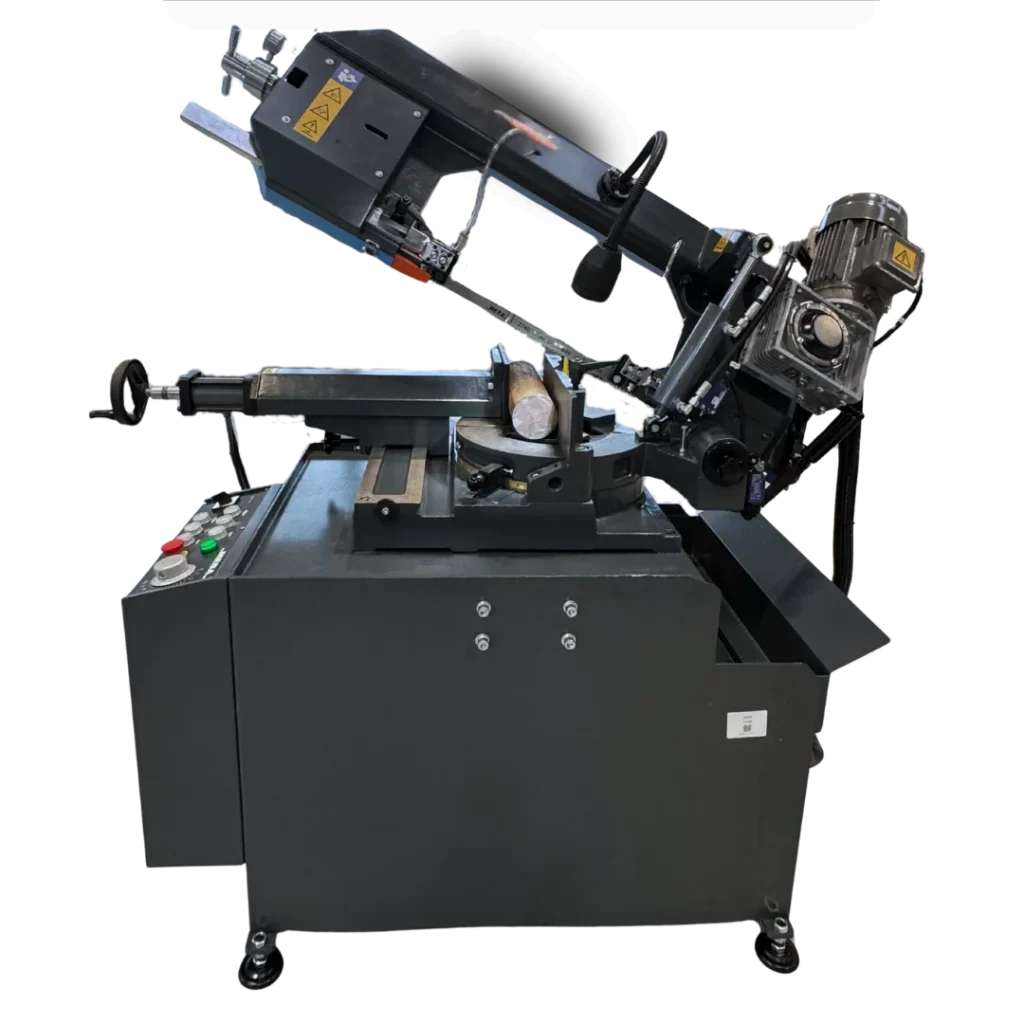

The universally applicable miter band saw swing 260 DG
is ergonomically mature and has an optimal price-performance ratio.
Easy central control.
The machine control complies with the CE standard 89/289
Standard equipment of the swing 260 DG-H
- Mitre system: Rotating table avoids sawing up of the material support. Material is always clamped rectangular and close to the saw blade.
- Manual miter setting from 90° – 30°, infinitely adjustable according to scale with 0.5° accuracy
- Miter pivot point is the intersection between saw band and material feed, so no change in length measurement is generated when changing the angle setting
- End stops at 30° – 45° – 90° – 45°
- Material quick clamping. The material is clamped parallel to 90° at each angle setting of the saw frame.
- Central machine control
- Cutting pressure reduction by the own weight of the heavy, torsion-resistant cast saw frame and fine adjustment depending on the material cross-section via hydraulic damping cylinder and weight compensation spring
- Saw band drive with end switch-off
- Infinitely adjustable clamping jaws with eccentric clamping
- Movable guide arm, adjustment to material width
- Saw band deflection rollers hard metal guide
- Chip cleaning brush running along
- Saw band tension mechanical
- Operating instructions and spare parts list on CD-ROM
- 1 bimetal saw band 4/6 ZpZ mounted on the machine
- Complete cooling system with electric immersion pump
- Painting silver gray/ blue gray (RAL 7001/ RAL 7031)
- Hydraulic lifting of the saw frame with check valve
