swing 260 DG

Der Universalhelfer: clever und unkompliziert

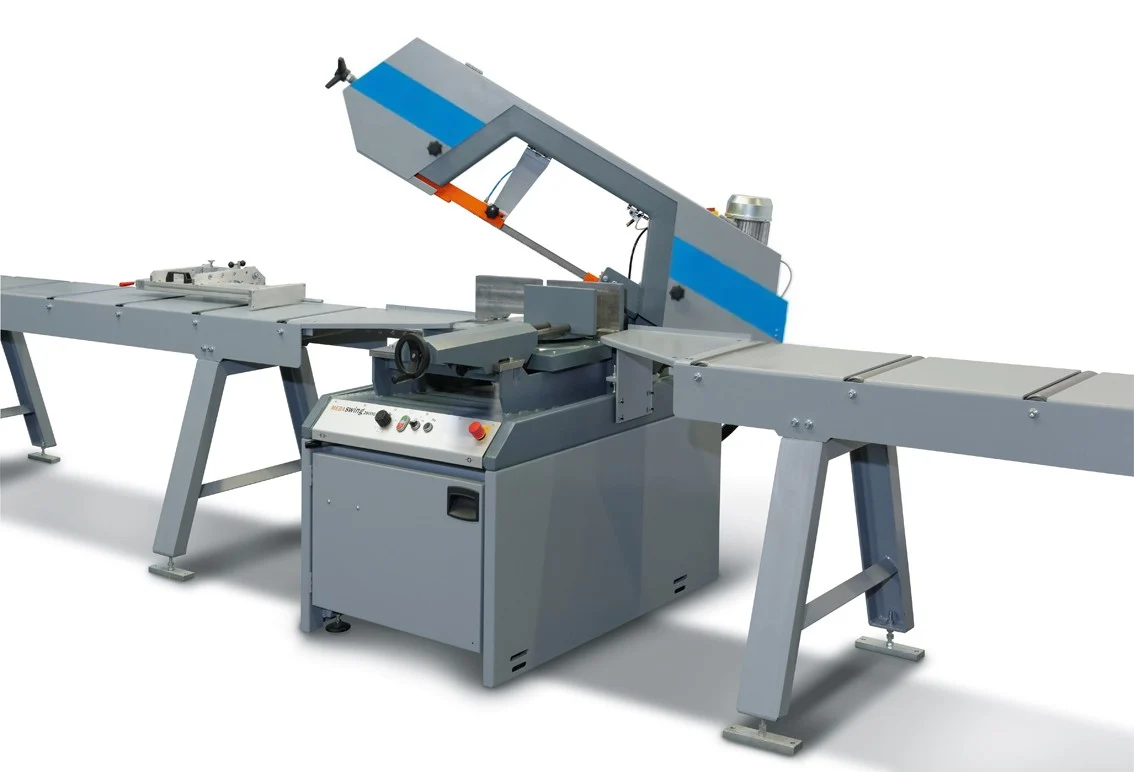

The universally applicable swing 260 DG miter band saw machine features an ergonomically advanced design and an optimal price-performance ratio. It is particularly suitable for versatile use with different cross-sections, materials, and frequently changing miter cuts. The machine control complies with CE standard 89/289.

Standard equipment

• Fast, stepless miter adjustment from 30° to 150° with 0.5° accuracy via scale. The miter pivot point is the intersection between the saw blade and the material support, ensuring no change in length
• Central machine operation
• Manual material clamping; at any saw frame angle, the material is clamped square to the material support edge
• Cutting pressure reduction by the dead weight of the heavy, torsion-resistant saw frame, with fine adjustment via hydraulic damping cylinder depending on material cross-section
• Saw blade drive with automatic shut-off
• Stepless clamping jaw adjustment
• Movable band guide arm, adjustable to material width
• Standard coolant system, optionally expandable with a micro-dosing system
• Machine stand with chip collection tray
• Mechanical saw blade tension
• Precision carbide roller saw blade guidance
• Paint finish silver gray / blue gray (RAL 7001 / RAL 7031)
• Operating manual and spare parts list (digital)
• 1 saw blade mounted on the machine, 4/6 TPI
